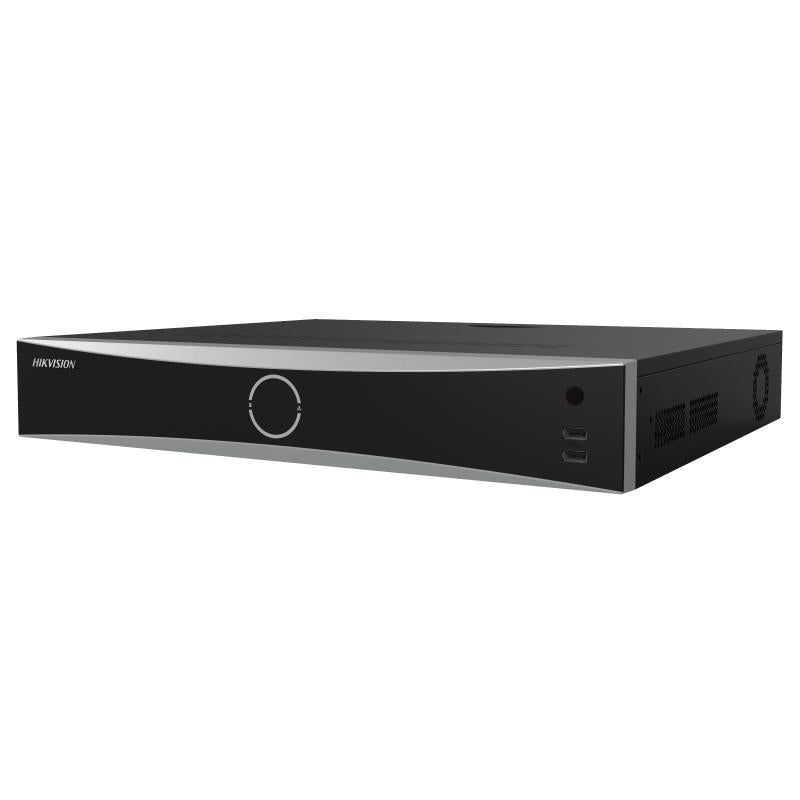

The Hikvision DS-7732NXI-K4/16P 32 Channel 4 SATA AcuSense Facial Recognition NVR is a powerful network video recorder (NVR) designed for large-scale surveillance systems, integrating advanced features like AcuSense technology and facial recognition. This NVR is ideal for commercial, industrial, and institutional applications, offering enhanced analytics and robust storage options. Below is a detailed overview of its key features and specifications:
Key Features:
-
32 Channel Capacity: The DS-7732NXI-K4/16P supports up to 32 IP camera channels, making it suitable for large-scale surveillance setups. It allows the user to manage multiple cameras from a centralized location.
-
AcuSense Technology: Equipped with AcuSense technology, this NVR can differentiate between human and vehicle targets, significantly improving accuracy in motion detection. This feature reduces false alarms by filtering out irrelevant movements such as animals or weather changes.
-
Facial Recognition: One of the standout features of this NVR is its facial recognition capability. It can identify and track individuals across multiple cameras, providing enhanced security through automatic detection, comparison, and recognition of human faces. This is particularly useful in high-security areas like banks, airports, and office buildings.
-
4 SATA Interfaces: The NVR is equipped with 4 SATA interfaces, allowing up to 40TB of storage capacity. This large storage space is essential for recording high-resolution video footage over extended periods, particularly in commercial and industrial environments.
-
16 PoE Ports: The built-in 16 Power over Ethernet (PoE) ports simplify installation by allowing both power and data to be transmitted through a single cable to connected cameras. This reduces the need for additional wiring and improves overall system efficiency.
-
4K UHD Output: The NVR supports 4K UHD output, allowing for crystal-clear video playback and monitoring. This is beneficial for reviewing footage in detail, especially in scenarios where high resolution is critical for identifying individuals or objects.
-
Advanced Video Compression (H.265+): The DS-7732NXI-K4/16P supports the latest H.265+ video compression standard, which reduces bandwidth and storage requirements without compromising video quality. This leads to more efficient storage use and lower operational costs.
-
Dual-OS Design: The NVR features a dual operating system design for enhanced system reliability. This ensures continuous system operation, even in the event of a software failure, making it highly reliable for critical security environments.
-
Remote Access and Control: The NVR supports remote access via web browsers or mobile apps, enabling users to view and manage their surveillance system from anywhere at any time. This adds flexibility and convenience, especially for multi-location monitoring.
Specifications:
- Channels: 32 IP camera inputs
- AcuSense Technology: Human/vehicle classification, false alarm reduction
- Facial Recognition: Supports facial comparison and recognition
- Storage: 4 SATA interfaces, up to 40TB total storage capacity (10TB per HDD)
- PoE Ports: 16 built-in PoE ports
- Output Resolution: Supports 4K UHD output
- Video Compression: H.265+/H.265/H.264+/H.264
- Network Throughput: Up to 320 Mbps incoming bandwidth
- HDMI and VGA Output: 1 HDMI and 1 VGA output for video display
- USB Interfaces: 2 USB 2.0 and 1 USB 3.0 port for external storage and backup
- Power Supply: 100 to 240 VAC, 50/60 Hz
- Operating Conditions: -10°C to 55°C, humidity 10% to 90%
- Dimensions: 445 × 400 × 71 mm (standard 19-inch 1.5U chassis)
- Weight: Approximately 5.5 kg (without hard disks)
- PoE Power Supply: Up to 200W total power budget
Applications:
-
Commercial and Industrial Use: With support for 32 channels and 16 PoE ports, this NVR is ideal for large-scale security operations, including shopping malls, factories, and office complexes, where extensive camera coverage is required.
-
Critical Security Environments: The facial recognition and AcuSense features make it suitable for high-security environments like government buildings, airports, and banks, where advanced analytics and identification are essential.
-
Residential Complexes: This NVR can also be used in large residential complexes for monitoring common areas, entry points, and parking lots with the help of its large storage capacity and advanced motion detection capabilities.
Summary:
The Hikvision DS-7732NXI-K4/16P 32 Channel NVR with AcuSense and facial recognition is a feature-rich and high-performance network video recorder. It offers robust video management, advanced AI-based analytics, and significant storage capacity, making it suitable for large-scale surveillance setups. Its PoE support, 4K UHD output, and efficient H.265+ compression ensure efficient and high-quality monitoring, while the facial recognition and AcuSense technology enhance overall security by reducing false alarms and improving human/vehicle detection.
